DQ502
1 SUMMARY
DQ502, an IC card reader and writer , designed by small size, low power check card (LPCD) and easy operation. This RFID reader can read the main part of smart cards.
It widely used in office/home security, personal identity, entrance guard system, security systems, intelligent instruments and meters, interactive toys and production process control ,which a variety of wireless radio frequency identification (RFID) system.
2 FEATURES
Computer interface
Interface
USB-HID
Power supply
5V（±5%）
Power consumption
Max 120mA
Contactless smart card interface.
Termsed standard
ISO14443 TYPE- A,
Standardof
contactless card
ISO14443A,which is MIFARE Classic 1K/4K, FM11RF08,
MIFARE Ultralight
ISO14443A CPU,NTAG203/213
Working frequency
13.56MHz
Operating distance
0-50mm（depending on card quality）
Status indication
One tone,
Dimension
105*70*12mm
Environmental requirements
Operating temperature
-25~+85℃
Storagetemperature
-40~+125℃
3 PICTURES

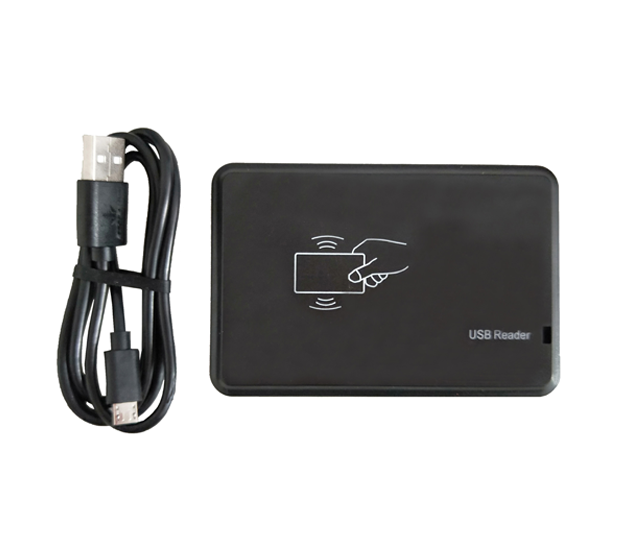

Product Pictures
4 ORDER LIST
|
Type |
Supporting instruction |
|
DQ502 |
Only Reader ISO14443Type-A,(MIFARE Classic 1K/4K, FM11RF08, MIFARE Ultralight, ISO14443A CPU,NTAG203/213) |
|
DQ502+ |
Reader and Writer ISO14443Type-A,(MIFARE Classic 1K/4K, FM11RF08, MIFARE Ultralight, ISO14443A CPU,NTAG203/213) |
