DQ322
1 SUMMARY
DQ322, an IC cards read and write module designed by small size, low power check card (LPCD) and easy operation. The module and antenna is integrated.Easy to use,safety to opreate, It has various functions and terms multi ISO/IEC standard of contactless card.. Widely used in office/home security, personal identity, entrance guard system, security systems, intelligent instruments and meters, interactive toys and production process control ,which a variety of wireless radio frequency identification (RFID) system.You can choose anti-interference design stable reading and writing card in metal environment to customization
2 FEATURES
Computer interface |
|
Interface |
UART-TTL (4800, 9600,19200, 38400, 57600,115200) |
Power supply |
5V(±5%) |
Power consumption |
Max 200mA |
Contactless smart card interface. |
|
Termsed standard |
ISO14443-TypeA, ISO14443-TypeB,ISO15693 |
Standardof contactless card |
ISO14443A:MIFARE Classic 1K/4K, FM11RF08, MIFARE Ultralight ISO14443A CPU ISO14443-TypeB(ISO14443B CPU) ISO15693 |
Working frequency |
13.56MHz |
Operating distance |
0-70mm(depending on card quality) |
Human-Computer Interface |
|
Dimension |
90mm*60mm*10mm |
Stand by |
Support low power check card(open by confirmed) |
Environmental requirements |
|
Operating temperature |
-25~+85℃ |
Storagetemperature |
-40~+125℃ |
3 ORDER LIST
Type |
Supporting instruction |
DQ322 |
Support ISO14443 TypeA,(MIFARE Classic 1K/4K, MIFARE Ultralight, ISO14443A CPU) ISO14443 Type B,(ISO14443B CPU) ISO15693 |

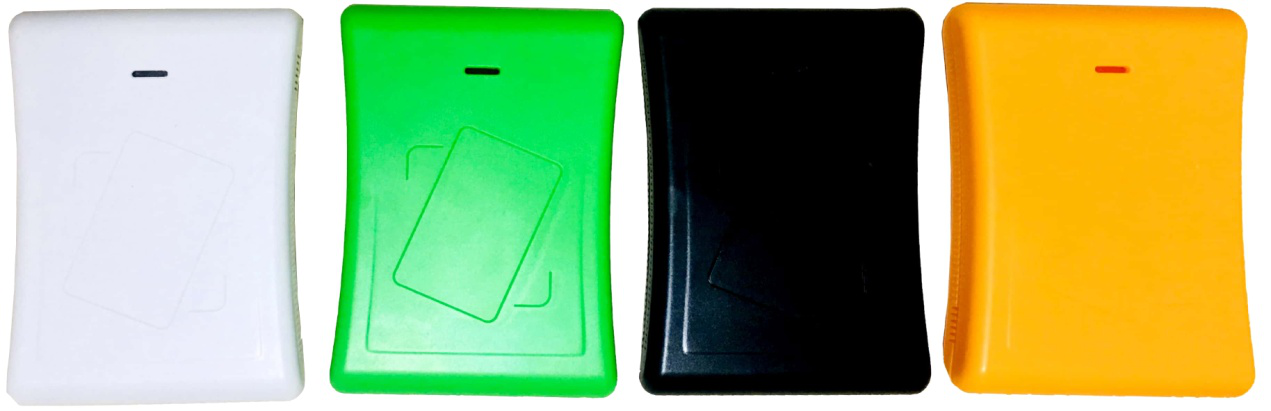

4 READERER AND WRITER PICTURES
Other Parts, USB cable
